Agile guide to - Fishbone Diagram

What is the tool used for?

A fishbone diagram is used when you want to find out what is causing a problem that you are experiencing. It is most effective when used in a group where you have the benefit of multiple differing perspectives.

Why should someone use it?

This tool provides a structured approach to understanding the root causes of a problem. As a visual and collaborative exercise it encourages different perspectives and for individuals to be open to hearing and understanding the experience of others. Using this approach before deciding on the solution to a problem can result in savings of both time and resources. Combining this tool with a cause/effect analysis further increases your chance of solving the right problem – and not just patching up the symptoms you are experiencing!

Here is a short (2 min) LinkedIn Learning video which introduces the concept:  (opens in a new window)LinkedIn Learning – Fishbone Diagram

Directions on how to use it?

  1. Draw the skeleton of the fish on your whiteboard.Fishbone-template
  2. Label the skeleton with 4-6 headings for categories of potential causes. We typically use Process, Tools, People, Knowledge/Awareness – but you may prefer to pick your own.
  3. In the head of the fish write the problem you are experiencing.
  4. Ask each member of the group to write 3-5 potential causes for this problem on a post-it and place each post-it under the category it belongs to.
  5. Use the skeleton to structure the post-its and to group closely related causes so that it is visible which are primary causes and which are secondary.
  6. Now that you have agreed, as a group, what you consider to be the causes, you can prioritise which problems to solve by using cause screening.

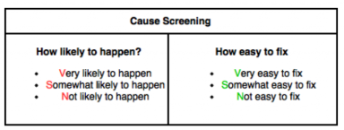

  7. Annotate each cause on the fishbone diagram with (1) how likely they are to happen and (2) how easy they are to fix – using v, s and n for very, somewhat and not. At the end of this exercise, each cause should be annotated with two letters. Cause-Screening
  8. Find the causes (if any) that are annotated with ‘vv’. These causes are very likely to happen and very easy to fix – you might call this a quick win and resolve it immediately!
  9. Find causes that are annotated with ‘vs’. These causes are very likely to happen and somewhat easy to fix – you might consider running a workshop or small improvement project to address these causes

What is cause screening? Cause screening is a technique for prioritising an improvement effort which will have the biggest impact with the least effort.

Example of where it has been used:

UCD Library teamed up with UCD Agile and the Curriculum Team to tackle a long standing problem of not receiving reading lists from module coordinators. This problem meant the the Library were not capable of fully supporting UCD students who wanted to borrow their reading list materials from the Library.

Reading-list-fishbone

The Fishbone Diagram was developed with inputs from the Library, Curriculum Team and Academics (see above). Using cause screening, a quick win was identified. The timing of the call for reading lists was out of sync with how Module Coordinators work! As a quick win, the Library removed the deadline for submitting reading lists and sent out a reminder instead. The project delivering this (and other) improvements to the Reading List process resulted in a 50% increase in the number of modules supported by the Library. For further information on the library project visit: https://www.ucd.ie/library/contact/projects/
